Material:
Information:
  • description
  • technical data
  • downloadable

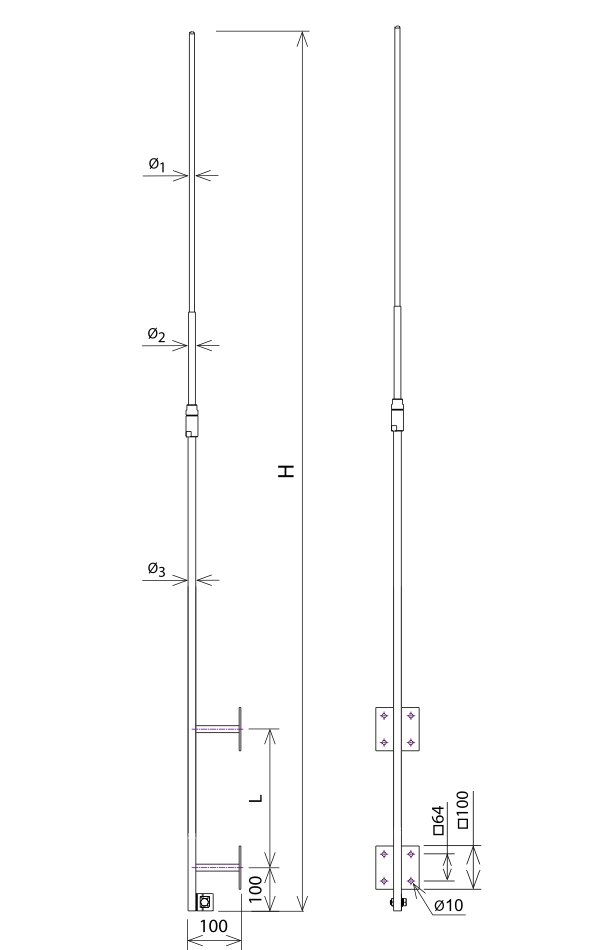

Implementation of lightning protection of chimneys, superstructures and other devices on the roofs of buildings. There are mounting holderspermanently welded into the spiers and a connector for connecting to the ground wire.

symbol
type
H196404
AN-90E/OG/
H
(mm)
3000
Ø1
(mm)
10
Ø2
(mm)
16
Ø3
(mm)
18
L
(mm)
320
conductor
(mm)
Ø8
material hot galvanised steel
